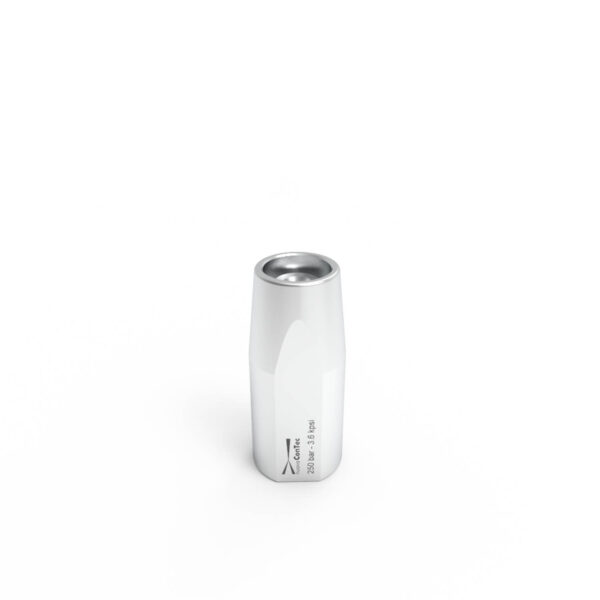

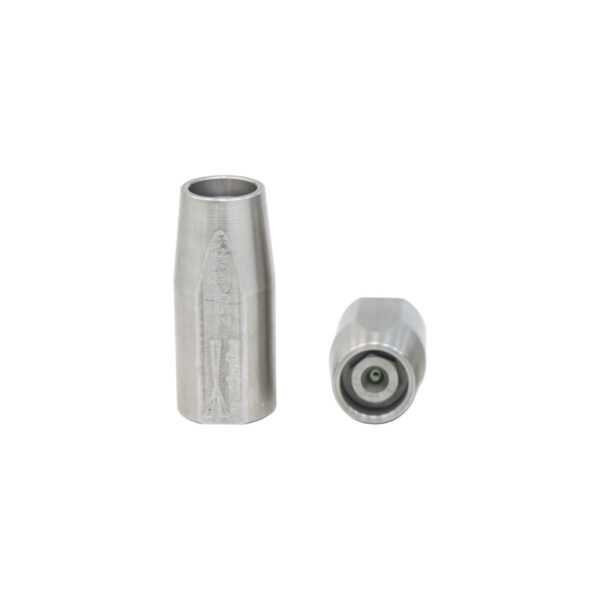

Rotating front jet nozzle with extremely high speed.
Three versions are available with a different maximum pressure: 255, 310 e 400 bar.
For each version several nozzles are available with a different orifice size, corresponding to the flow (gpm) which is necessary to obtain a pressure of 276 bar.
To select the right orifice size it is recommended to refer to the table you can find in the documents below.
To replace the internal rotation device you can order a specific kit for repair.
Rotojet
Rotating jet nozzles.
Description
Technical Specifications
Model | Rotojet 255 | Rotojet 310 | Rotojet 400 | Rotojet 600 |
Inlet | 1/4″ F | 1/4″ F | 1/4″ F | 1/4″ F |
Weight (gr) | 327 | 407 | 732 | 540 |
Maximum Pressure (bar) | 255 | 310 | 400 | 600 |
Nominal Temperature (°C) | 100 | 100 | 90 | 90 |
Items
Part Number | Description | |
---|---|---|
75000.93/120 | Rotojet 255 bar 3700 psi (120) DN 2.12 | |
75000.92/060 | Rotojet 310 bar 4500 psi (060) DN 1.50 | |
75000.90/200 | Rotojet 400 bar 5800 psi (200) DN 2.75 | |
75000.96/080 | 600 BAR SS ROTATING NOZZLE FOR LANCE, 1/4″F, FP 080 |
