It is able to suck up to 6 mt in depth. The suction capacity varies according to the pump flow, to the depth and to the working pressure. It is provided with a piece of suction hose DN40 5 mt long.

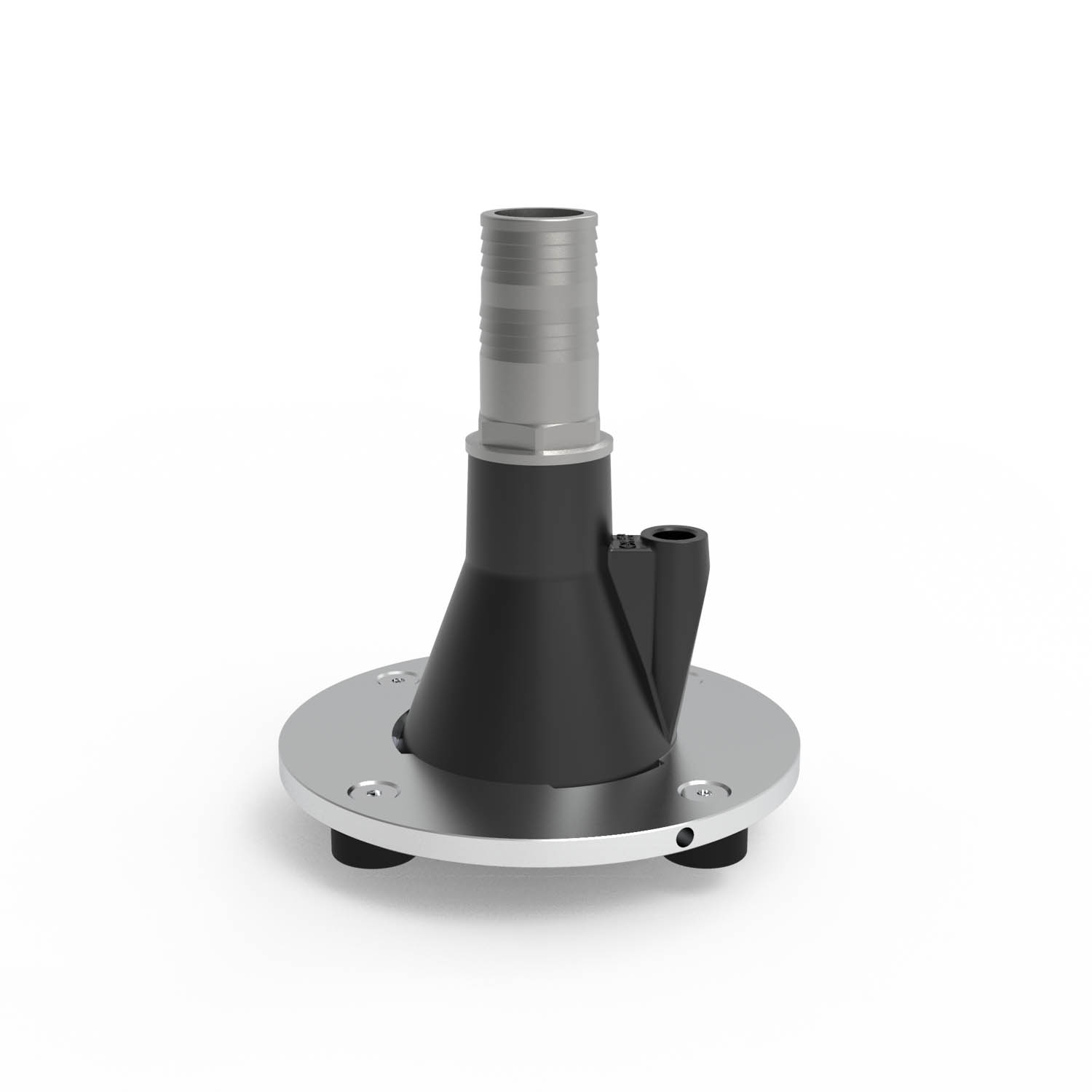

Sludge Pump
The Venturi-effect liquid sucker can be connected to pressure washers, high pressure washing systems, or to cleaning vehicles secondary reels, to quickly suck liquids and mud from flooded basements, manholes, pools, working areas, or to fill tanks and vessels.
Technical Specifications
Inlet | 3/8 F |
Ø x L (mm) | 107 x 115 |
Nominal Temperature (°C) | 90° C |
Nominal Pressure (bar) | 250 |
Flow max (l/min) | 25 |
Items
Part Number | Description | |
---|---|---|
5100.00 | SLUDGE PUMP, W/5 MT DN40 SUCTION HOSE | |
5100.00-01 | VENTURI SLUDGE PUMP, WITHOUT INSERTS | |
5100.00-02 | VENTURI SLUDGE PUMP, WITHOUT HOSE |
