The rounded shape facilitates navigating in curved pipes and prevents potentially harmful impacts in old pipes that could be damaged by nozzles with sharp edges.

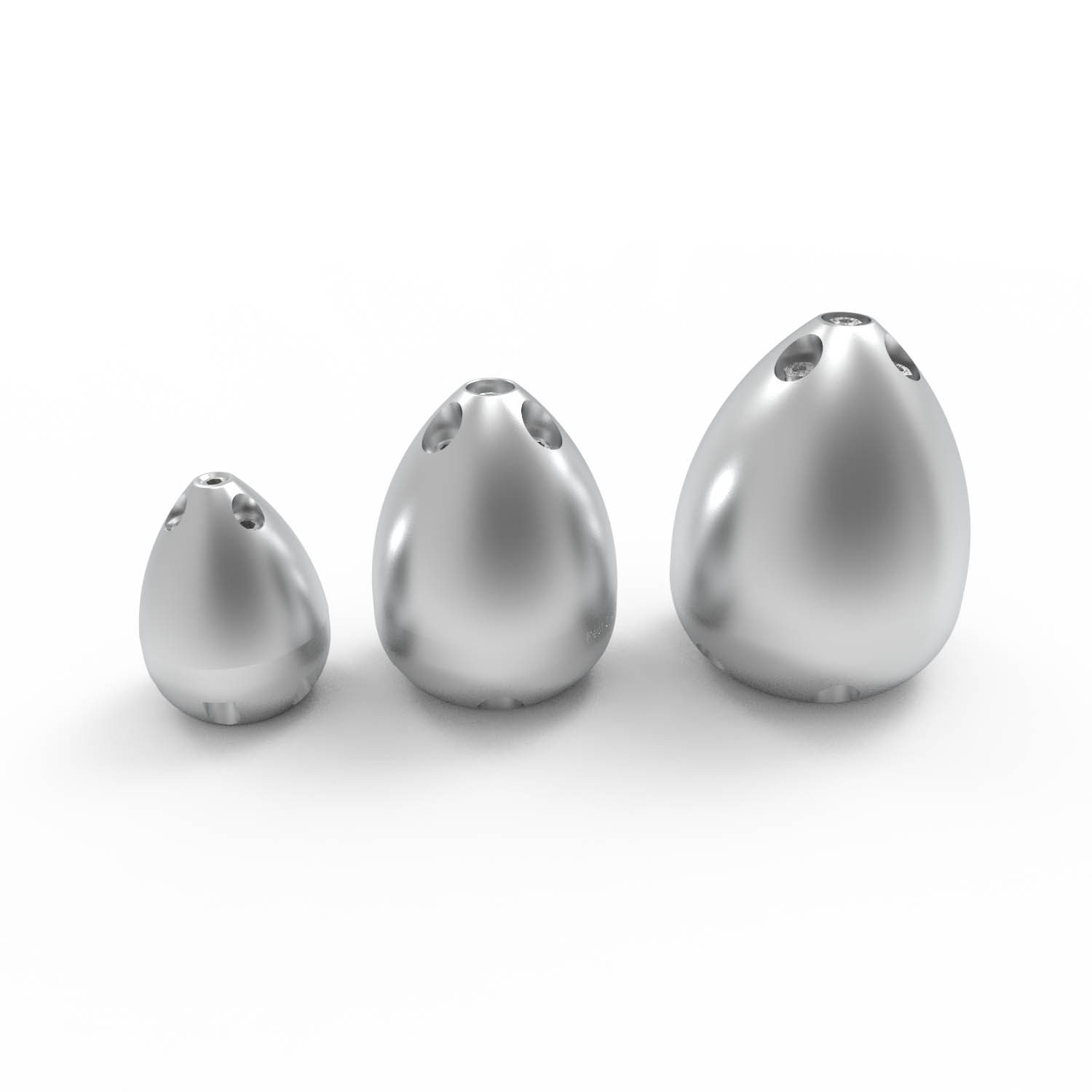

Rest egg-shaped breakthrough nozzles
Ovoid-shaped nozzles with interchangeable ceramic inserts and four front breakthrough jets.
Technical Specifications
| Inlet | 1/2″ F | 3/4″ F | 1″ F |
| Size (mm) | Ø42×55 | Ø58×72 | Ø69×85 |
| Weight (kg) | 0,28 | 0,78 | 1,3 |
| Front Jets | 3@15° + 1@0° | 3@15° + 1@0° | 3@15° + 1@0° |
| Rear Jets | 6@15° | 6@15° | 6@15° |
| Inserts | 85993.xx | 85993.xx | 85511.xx |
| DN lavoro (mm) | 60-200 | 150-200 | 150-300 |
Items
| Part No. | Description | |
|---|---|---|
| 5546.08 | REST 1/2″ NOZZLE, WITH 6 + 4 CERAMIC JETS | |
| 5546.12 | REST 3/4″ NOZZLE, WITH 6 + 4 CERAMIC JETS | |
| 5546.16 | REST 1″ NOZZLE, WITH 6 + 4 CERAMIC JETS |
