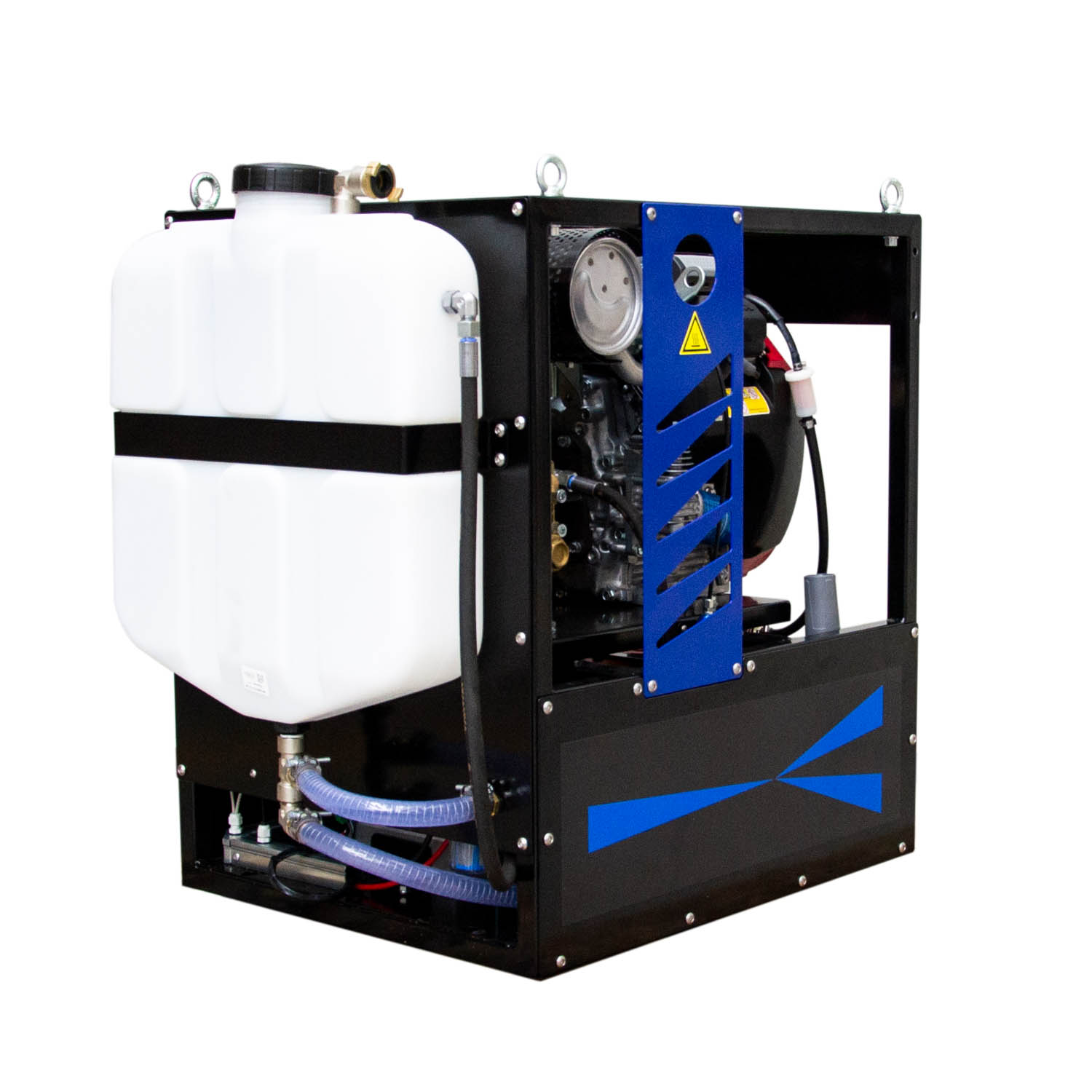

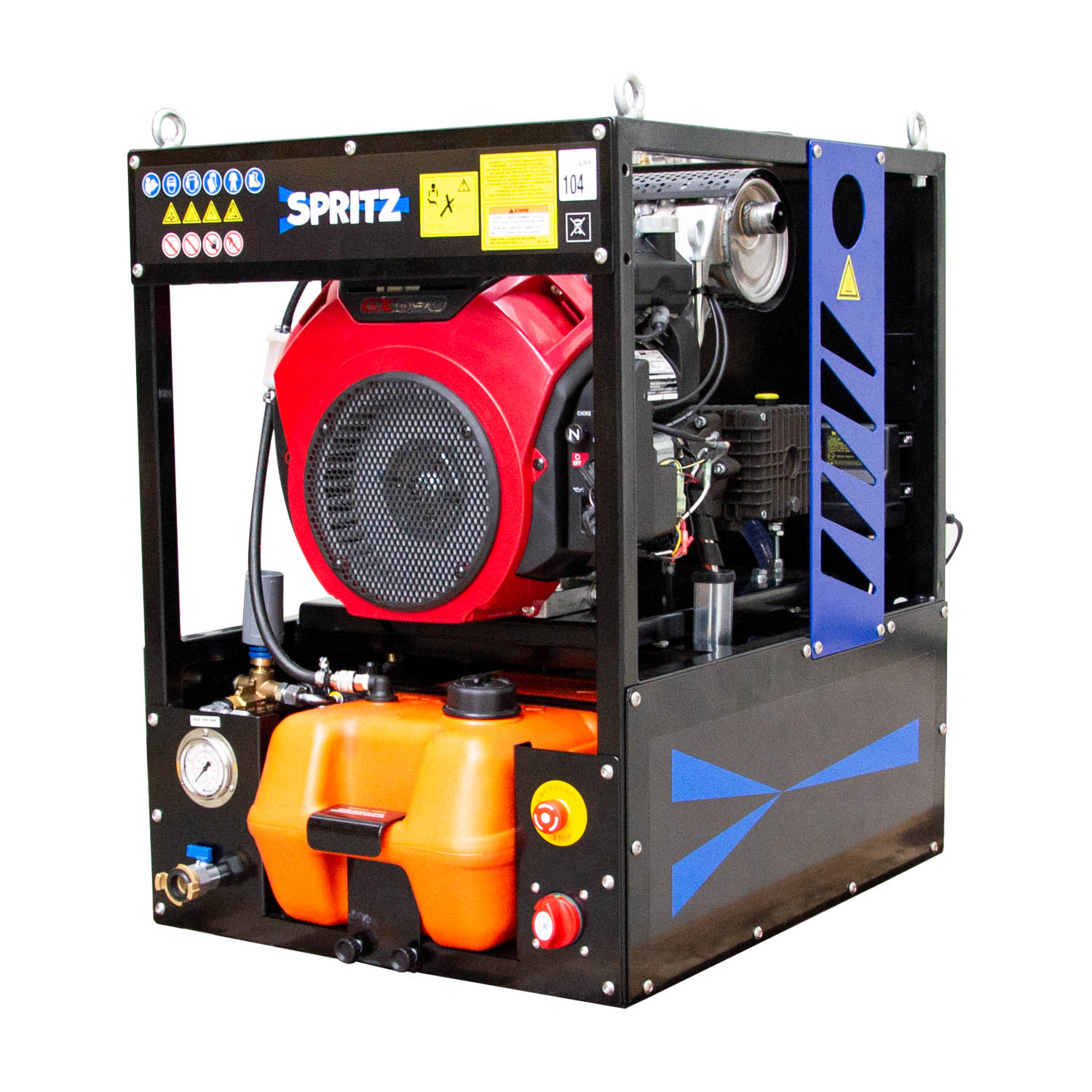

SPRITZ 25/300 – HP Washing Unit
SPRITZ 25/300 is a cold-water high-pressure washing module
designed for cleaning stormwater and/or sanitary sewer lines,
with a high-pressure hose and nozzles selected according to the pump’s specifications and the intended cleaning purpose
(general cleaning, unclogging, removal of grease, roots, or other debris).
Description
General Description
Given its size and features, this washing unit is designed to be mounted on a commercial vehicle for emergency response operations and drain pipe unclogging.
The module must be configured and integrated with the following components (see the technical data sheet for a comprehensive description):
- Storage tank, available in three versions:
- 50-liter, included in the module’s standard configuration;
- 30-liter, which brings the module length to 925 mm;
- 400-liter, detached from the module, mounted on a suitable metal frame with overall dimensions (WxLxH) of 1050x650x1270 mm.
- Hose reel with corresponding hoses:
- High-pressure: designed to convey pressurized water via a flexible hose from the washing module to the nozzle
- Low-pressure: used to fill the water storage tank to supply the high-pressure pump.
- Accessories that complete the basic equipment, such as high-pressure nozzles and personal protective equipment.
Technical Specifications
| Motor | Honda Gx 690 |
| w/electric start, air cooling , 22,1 hp, 688 cc, petrol power with 22 liters tank. | |
| Pump | Interpump W3025 |
| Flow 25 lt/min | |
| Maximum pressure 300 bar | |
| With brass head and ceramic plungers. | |
| Gearbox i=2,2 18,5 kW (25 hp) | |
| Safety | By-pass valve for pressure regulation. |
| Maximum pressure valve | |
| Speed decelerator upon bypass valve activation | |
| Water storage tank, with a valve and float switch to stop filling when the tank is full, a low-level sensor to shut off the motor when the water runs out, and a water filter at the pump inlet. | |
| Battery Cut-Off Switch | |
| Emergency button | |
| Remote control to activate/deactivate flow and stop the engine. | |
| Dimensions | Length 830 mm (without tank) – 1250 mm (w/50 lt tank) |
| Width 615 mm | |
| Height 875 mm | |
| Weight | 180 kg (without reel) |
| Frame | Made of powder-coated steel |
Items
A4.JT06-11
|
Spritz 25/300 – HP washing unit |
| A4.JT06-13 | Water storage tank 50 lt |
| 3518.00 | Sile 1/4″ F |
| 5526.00 | Arzino 1/4″ F |
Optional accessories
|
|
| A4.JT06-12 | 30-liter tank (replacing the 50-liter tank) mounted on the module |
| A4.JT06-14 | 400-liter tank (replacing the 50-liter tank) with a separate housing |
| 6001.03-07 | Column with 2 reels (with 40 meters of 3/8“ high-pressure hose with 3/8” M fittings and 25 meters of 3/4″ low-pressure hose) |
| 5999.8.06-040R319 | 3/8“ HP hose, 345 bar, 40 m long (3/8” F 90° – 3/8″ M) |
| 5999.8.06-060R319 | 3/8“ HP hose, 345 bar, 60 m long (3/8” F 90° – 3/8″ M) |
| 5918.00 | 3/4″ low-pressure hose for tank filling (sold by the meter) |

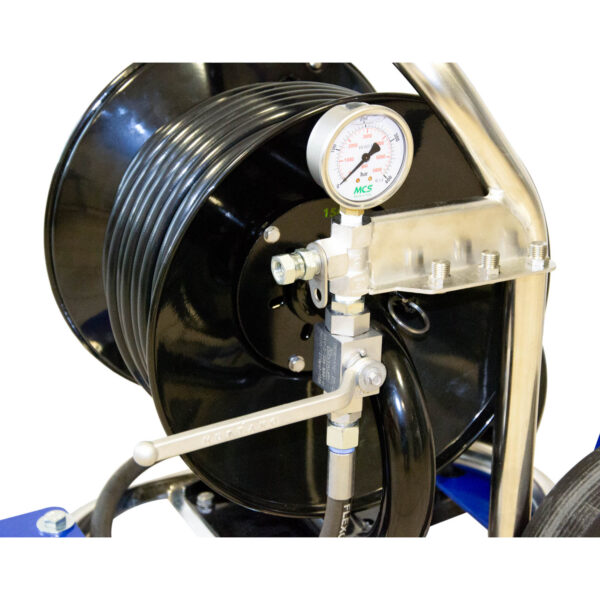

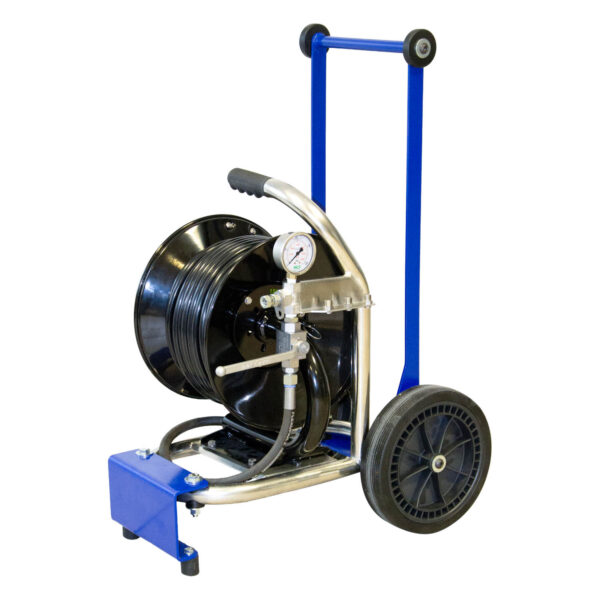

| 6001.03P | Remote reel with valve and gauge (3/8″ F inlet swivel) |
| 6001.07 | Compact Trolley reel with valve and gauge (3/8″ F inlet swivel) |
| 5989.06-040R29 | 1/4″ HP hose, 345 bar, L. 40 mt (3/8″F – 1/4″M) |
| 5989.06-060R29 | 1/4″ HP hose, 355 bar, L. 60 mt (3/8″F – 1/4″M) |
| 6001.06 | XL Trolley reel with valve and gauge |
Accessories – nozzles
|
|
| 75150.03 | 1/4″ Bora |
| 75150.02 | 1/4″ Borino |
| 5560.05 | 1/4″ Raut |
| 77531.00 | 1/4″ Rotospin |
| 5947.05.15B | 3/16” thermoplastic hose, 350 bar, L. 15 mt (1/4”F-1/8”) |
| 5500.07 | 1/8″ Sile |
| 5500.07A | 1/8” Sile with front jet |
| 3801.115-02 | HP spray gun |
| 5930.00HPI | SS nipple ¼” M/M |
Accessories – Safety
|
|
| 9.0503-01 | Foot pedal (IN 3/8” F- OUT ¼” M) |
| 5300.21-01 | Safety plate for manholes |
| 5993H-C134 | Protective sleeve with carabiner for 3/8” hose |
| T.56600455920 | High-pressure flexible protective hose for a spray gun |
| A4.JT06-15 | Kit for use on a cart (wheels and handles) |
PPE for hydrostatic jetting
|
|
| (Protection level expressed in bar/100 for rotating jets, fan jets, and fixed jets in accordance with Directive 89/686/EEC) | |
| T.51020685000-00 | Helmet with visor and ear muffs (3,000 bar) (3000 bar) |
| T.56220255000-xx | Jacket (5/5/2) – sizes M/L/XL/XXL/2XL/3XL |
| T.56320255000 | Trousers (5/5/2) – sizes M/L/XL/XXL/2XL/3XL |
| T.56230255024 | Apron (5/5/2) – one size |
| T.56000255000-11 | Gloves (200 bar), pair, tg.11 |
| T.56520255000-xx | Boots (5/5/2), pair, size 36-48 |
