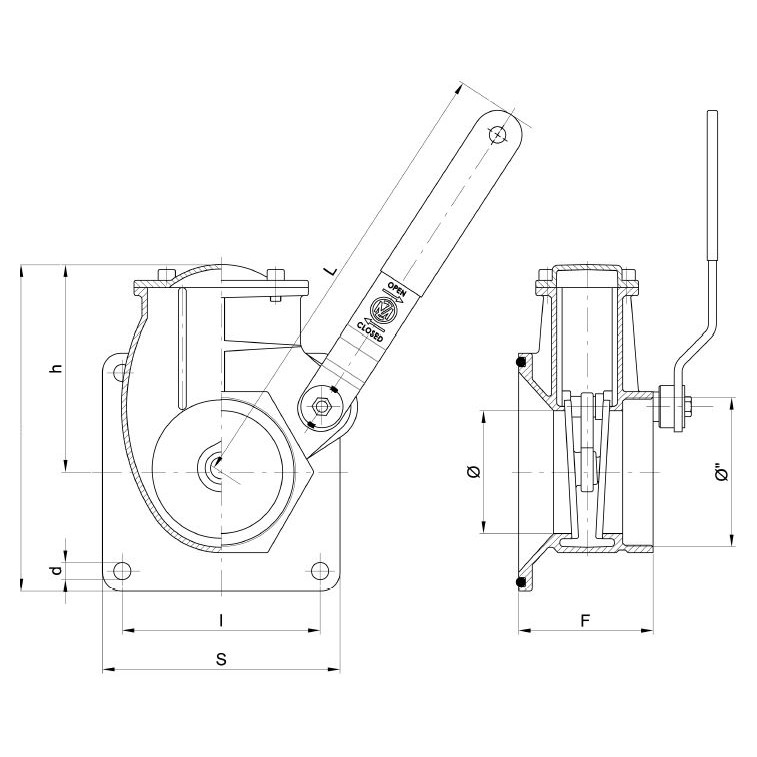

| Ø (in) | 4″ | 6″ |
| Ø (mm) | 93 | 145 |
| H (mm) | 248 | 323 |
| h (mm) | 158 | 233 |
| L (mm | 340 | 444 |
| F (mm) | 103 | 106 |
| I (mm) | 150 | 150 |
| d (mm) | 13 | 13 |
| S (mm) | 180 | 180 |
| Weight (gr) | 7200 | 11000 |
| Working Pressure (bar) | 6 | 6 |
| Working Temperature (°C) | -15 +80 | -15 +80 |

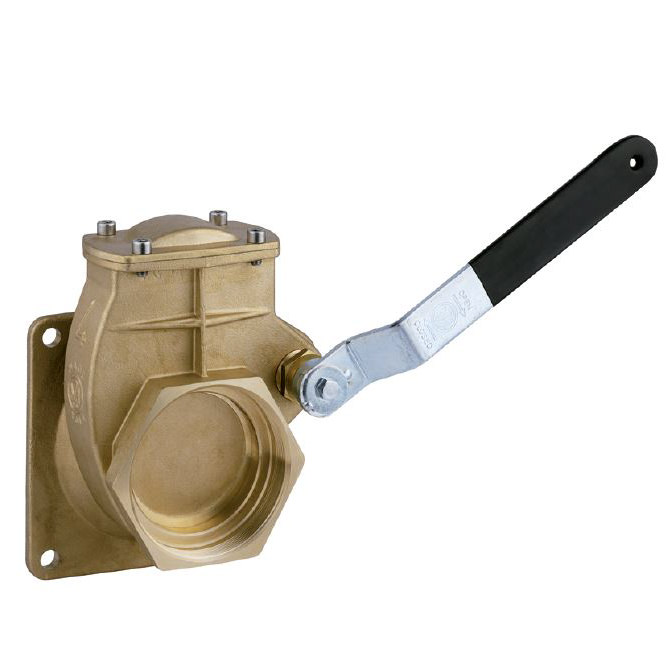

Lever Gate Valve with 1 Flange
Thread: BSP parallel UNI EN ISO 228/1
Technical Specifications
Items
| Part No. | Description | |
|---|---|---|
| 1935.08 | 4″ LEVER GATE VALVE GAS WITH 1 FLANGE | |
| 1935.07 | 6″ LEVER GATE VALVE GAS WITH 1 FLANGE |
