COLOUR
- Yellow and black
WORKING TEMPERATURE
- -40°C + 60°C
FEATURES
- Polyethylene tubing with constant wall thickness of 1.4mm over the entire diameter range
APPLICATIONS
- Designed for sanitary suction, duct cleaning, sewer inspections

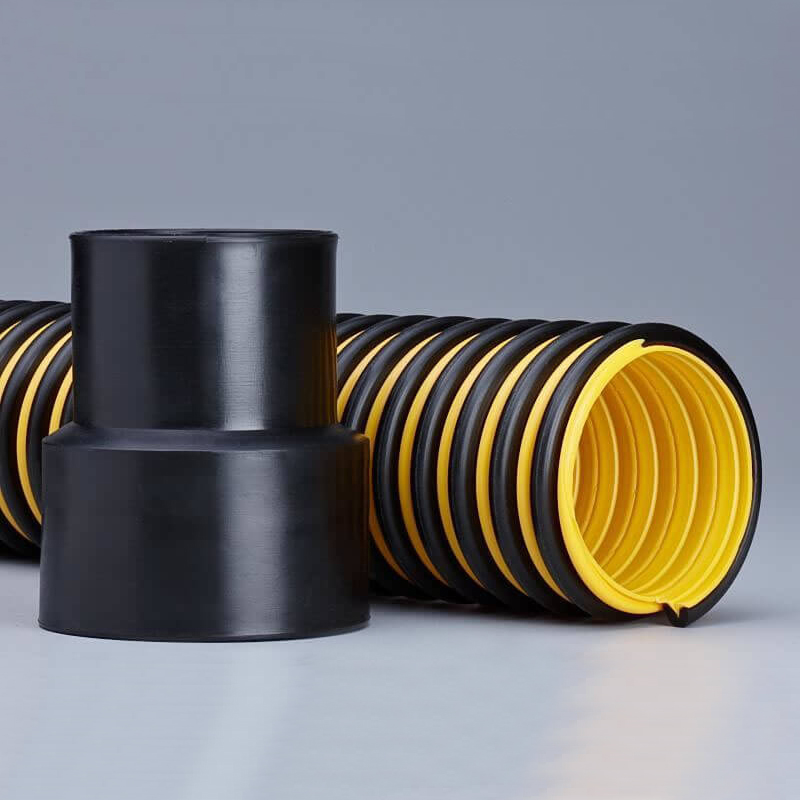

Toivac-N
Hose with smooth inner surface to optimise flow, suitable for sanitary suction, duct cleaning, sewer inspection.
Rugged yet lightweight and flexible even at low temperatures.
Can be supplied complete with seal-welded sleeves + 7.5m of black PPM rope on request.
Description
Technical Specifications
| DN (mm) | 51 | 63 | 76 | 102 | |
| Thickness (mm) | 1,4 | 1,4 | 1,4 | 1,4 | |
| Weight (g/m) | 950 | 1150 | 1400 | 1800 | |
| Bending Radius (mm) | 85 | 105 | 125 | 165 | |
| Vacuum (bar) | 0,95 | 0,95 | 0,95 | 0,85 | |
| Coil Length (m) | 7,5/10/15/20 | 7,5/10/15/20 | 7,5/10/15/20 | 7,5/10/15/20 |
Items
| Codice | Descrizione | |
|---|---|---|
| 2017.051-20 | TOIVAC N HOSE DN51 L.20MT WITHOUT CUFS |
